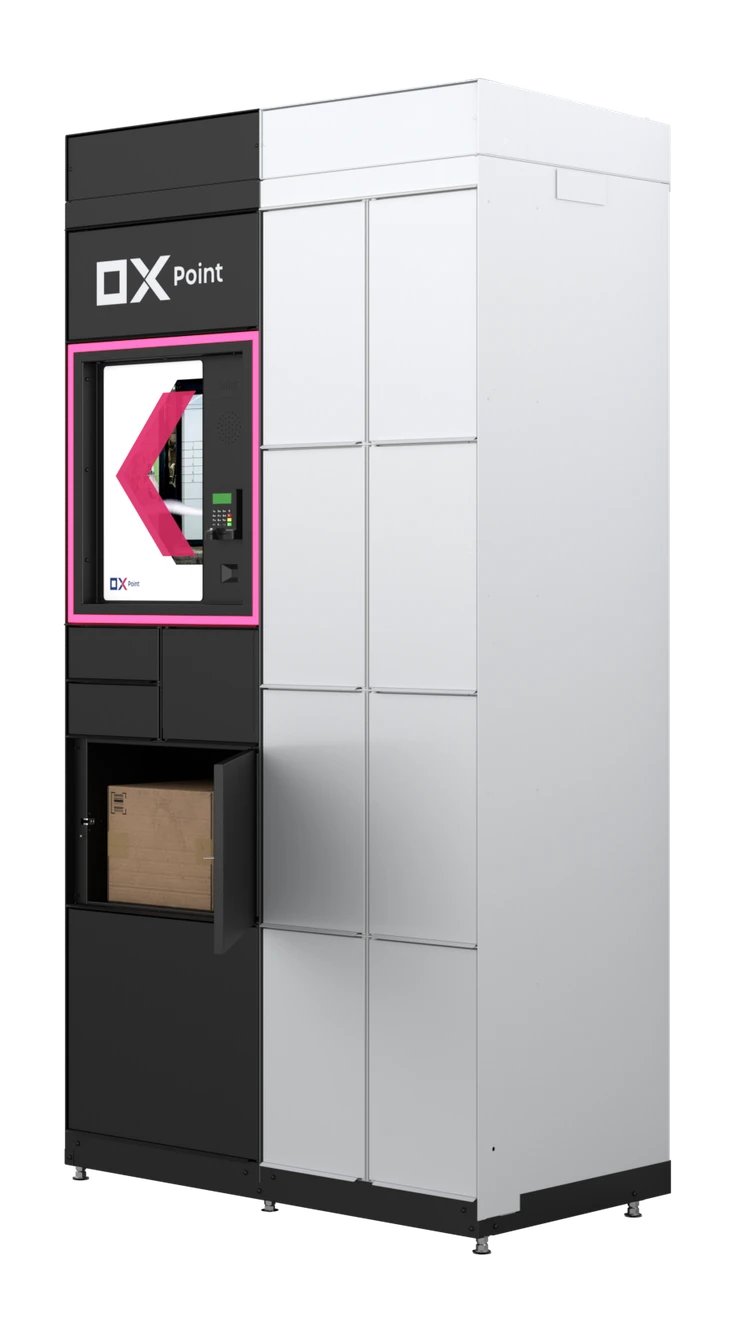

OX BOX Municipal Standard
Basic parcel locker (pickup/drop-off) with 21"/32" touchscreen. Includes digital notice board and secure P2P sharing. A reliable foundation.
OX Point Universal Delivery Boxes
OX BOX MUNICIPAL STANDARD
An affordable solution for municipalities prioritizing 24/7 parcel pickup and drop-off accessibility
- Parcels + Optional Digital Notice Board & Community Storage
- 21" Touchscreen (32" Upgrade Available)
- Our most affordable solution with the lowest starting price
Recommended for: Quiet residential areas, smaller villages, or as a starting point without additional modules.
| Receiving parcels / mailbox | 11 / 1 |
| 21" interactive LED display | YES |
|
Complete door including electromechanical lock |
YES |
|
QR and EAN code reader |
YES |
|
Shelf capacity |
up to 50 kg |
|
Stainless steel levelling base and ground anchorage |
YES |
|
Anti-corrosion and anti-graffi ti surface treatment |
YES |
|
CCTV |
NO |
| Thermal label printer | NO |
|
Roof |
Standard |
|
Design side posts |
NO |
Technical Specifications
| Construction |
Suitable for indoors and outdoors Riveted self-supporting sheet metal construction Outdoor configuration with PUR anti-leak seal Anti-corrosion and anti-graffiti finish Long life electromechanical lock Shelf load capacity up to 50 kg Individual customisation possible Variable modular solution Configuration with classic and refrigerated boxes
|
| Security |
QR and EAN code reader Security electromechanical lock Security camera with recording (optional) Stabilizing elements for anchoring into the ground
|
| Controls |
Terminal with user navigation Admin interface
|
| Services |
Possibility to integrate other services - Integration of third-party web applications (e.g. electronic office board) - Integration of different carriers
|
| Payment |
Payment terminal option with NFC reader
|
| Connecting |
Internet connection LAN or GSM signal
|
| Power |
230 V
|
| Dimensions |
Module - 60 cm x 210 cm x 63 cm (width x height x depth)
|
| Support |
Design Transportation HW and SW installation System setup and operator training Warranty and post-warranty service Customer support
|
| Warranty |
Standard 12 months, can be extended up to 5 years
|
Main advantages
-
Self-service solution
-
Terminal with user navigation
-
Transfer point between users
-
Receiving and sending shipments
-
Optional cooling units
Location of boxes
-
The Village
-
Municipalities
-
Urban districts
-
Suburbs

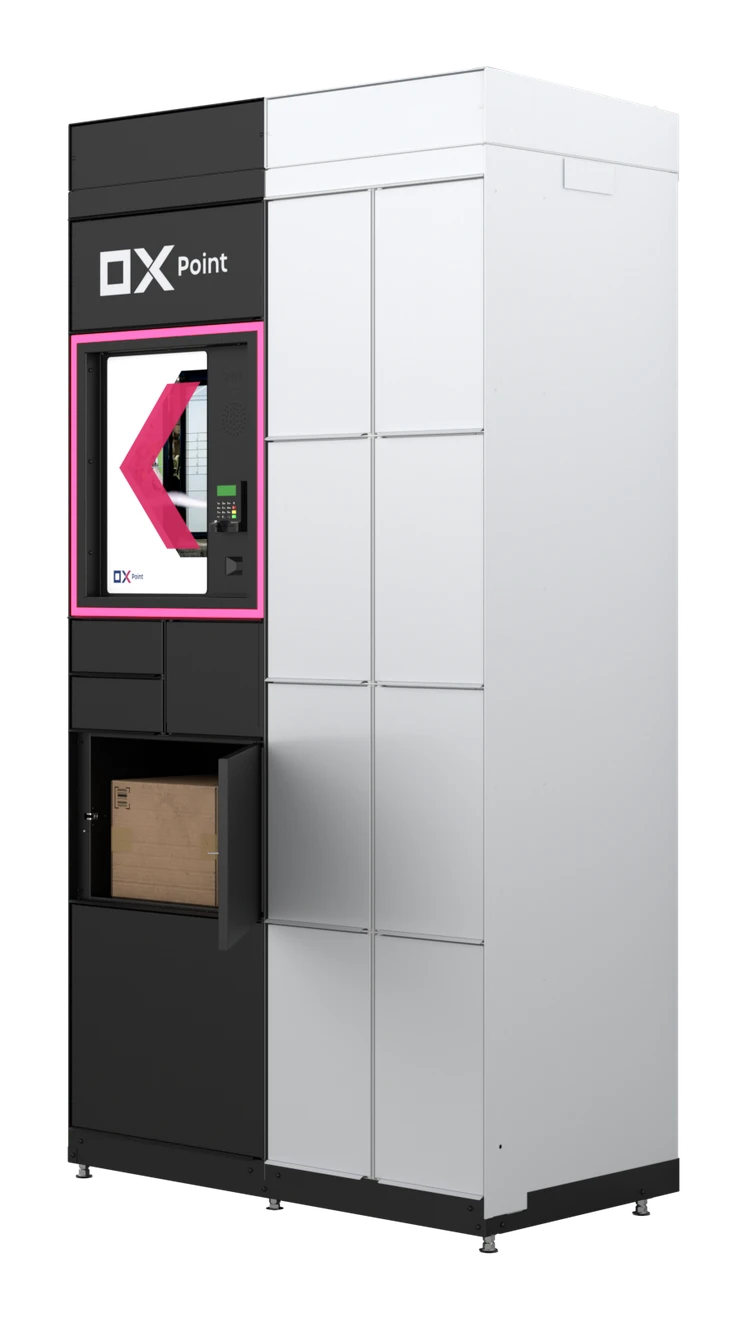

OX BOX Municipal Standard +
Enhanced box with cam & label printer. 21" or 32" screen. Handles parcel pickup/drop-off, notice board & P2P handovers. The perfect middle ground for any community—smart, secure and built to last.

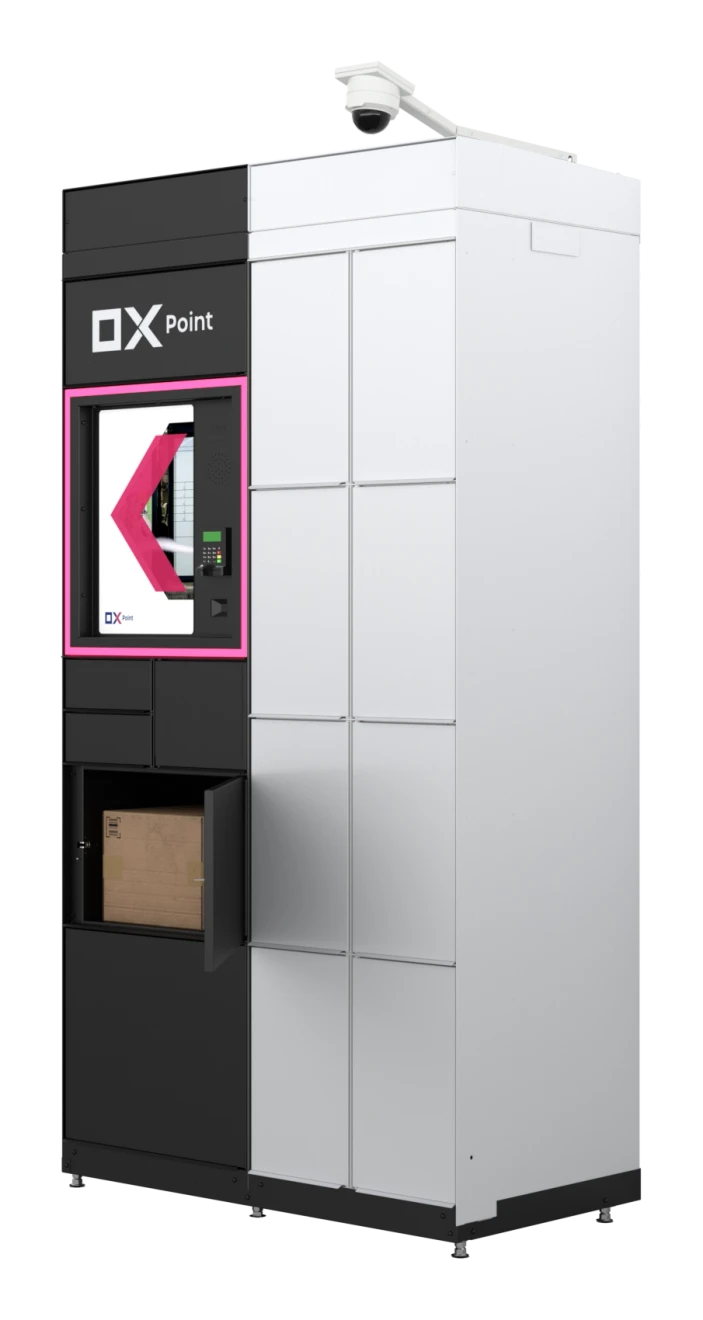

OX Box Municipal Premium
Fully equipped: 2 cams, roof & sides. 21" or new 32" screen. Supports parcel pickup/drop-off, label printing, digital notice board & secure P2P handovers. Smart, sleek and ready to serve your local community 24/7.
