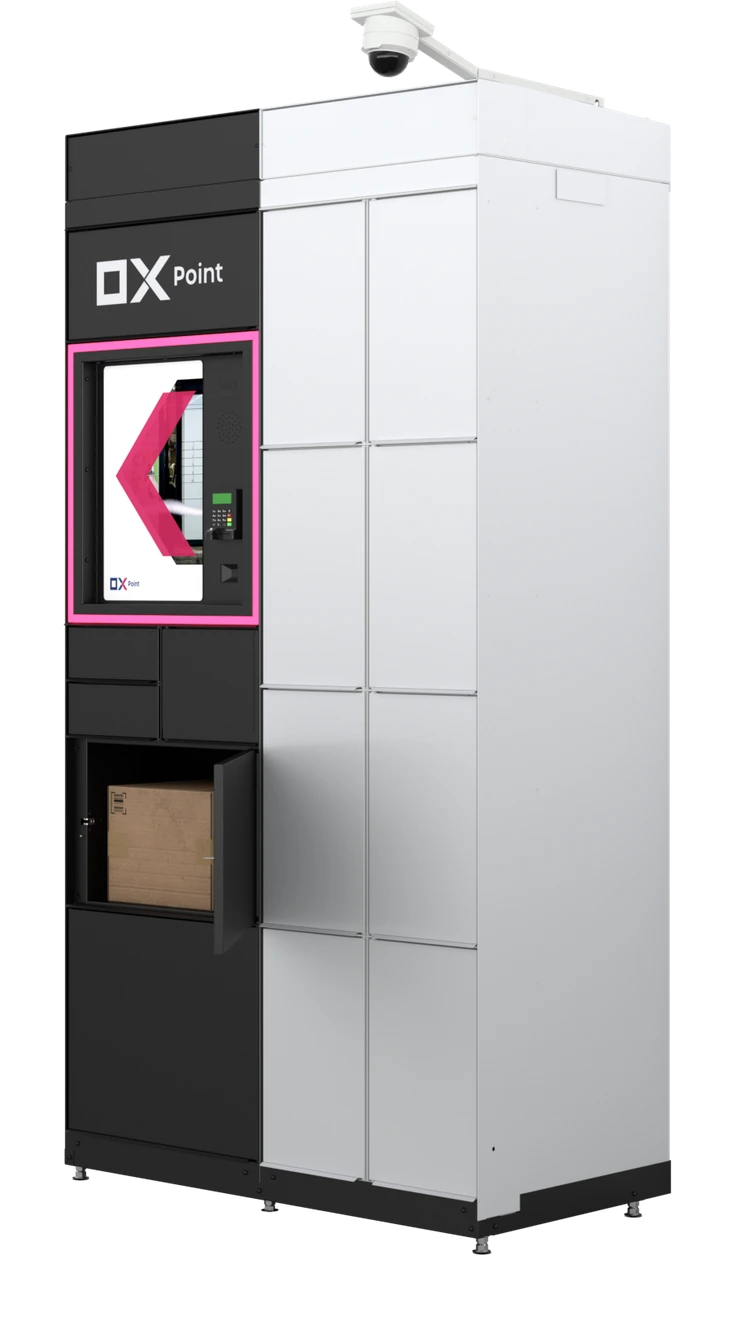

OX BOX Village Standard +
Standard version enhanced with camera system and thermal label printer for shipments. Now with 32" display option.
OX Point Universal Delivery Boxes
Its hardware and software solution respects the current and future needs of these municipalities, which participate in its development.
| Receiving parcels / mailbox | 11 / 1 |
| 21" interactive LED display | YES |
|
Complete door including electromechanical lock |
YES |
|
QR and EAN code reader |
YES |
|
Shelf capacity |
up to 50 kg |
|
Stainless steel levelling base and ground anchorage |
YES |
|
Anti-corrosion and anti-graffi ti surface treatment |
YES |
|
CCTV |
1 cameras |
| Thermal label printer | YES |
|
Roof |
Standard |
|
Design side posts |
NO |
Technical Specifications
| Construction |
Suitable for indoors and outdoors Riveted self-supporting sheet metal construction Outdoor configuration with PUR anti-leak seal Anti-corrosion and anti-graffiti finish Long life electromechanical lock Shelf load capacity up to 50 kg Individual customisation possible Variable modular solution Configuration with classic and refrigerated boxes
|
| Security |
QR and EAN code reader Security electromechanical lock Security camera with recording (optional) Stabilizing elements for anchoring into the ground
|
| Controls |
Terminal with user navigation Admin interface
|
| Services |
Possibility to integrate other services - Integration of third-party web applications (e.g. electronic office board) - Integration of different carriers
|
| Payment |
Payment terminal option with NFC reader
|
| Connecting |
Internet connection LAN or GSM signal
|
| Power |
230 V
|
| Dimensions |
Module - 60 cm x 210 cm x 63 cm (width x height x depth)
|
| Support |
Design Transportation HW and SW installation System setup and operator training Warranty and post-warranty service Customer support
|
| Warranty |
Standard 12 months, can be extended up to 5 years
|
OX BOX Village Standard
Basic municipal box with the ability to receive and send parcels equipped with a 21" touch screen. With the possibility of electronic office board service and transfer of things between citizens.
OX BOX Village Smart
Stadnard+ version with second camera, design sidewalls and canopy. Now with the option of a 32" display.
