Two-compartment cooled OX Box
Newly developed dual-section cooled unit for food & temperature-sensitive deliveries, designed for municipalities & firms.

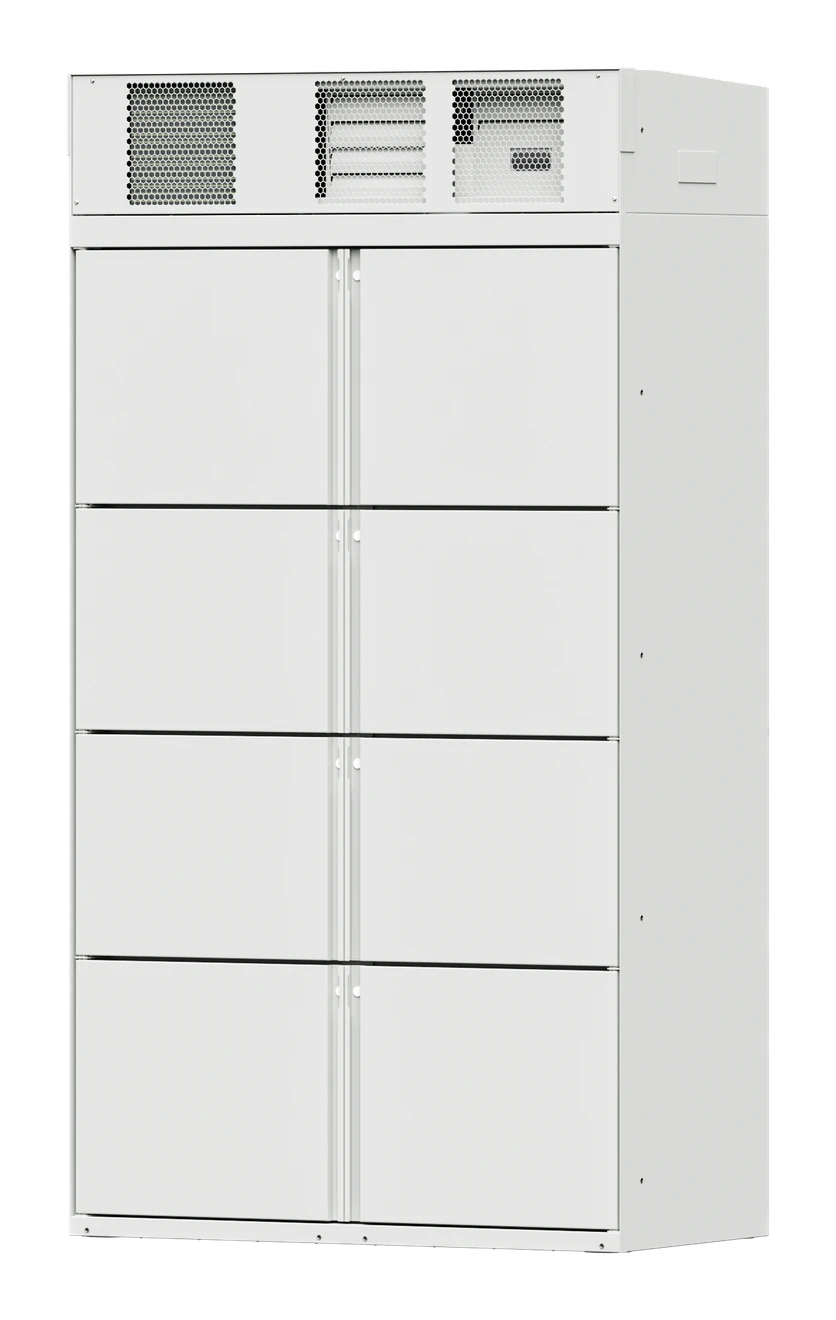

Two-compartment cooled OX Box
The newly developed OX Point dual-section cooled assembly. It expands the OX Box "Obec" with climate-controlled delivery capabilities. This modular solution is now available, unlocking new potential for food and temperature-sensitive logistics for both municipalities and businesses.
Technical Specifications
| Construction |
Suitable for indoor and outdoor use
Riveted self-supporting double-walled sheet metal construction, inner shell made of stainless steel sheet metal The box has two refrigerated sections with a total of 8 compartments Doors sealed with magnetic gaskets Anti-corrosion and anti-graffiti surface treatment Long service life of the electromechanical lock Shelf load capacity up to 30 kg Cooling provided by a compressor unit with a frequency-controlled compressor R290 refrigerant is a natural, environmentally friendly (GWP=3, ODP=0) refrigerant with excellent thermodynamic properties The cooling circuit and heat dissipation from it + the geometry of the internal cooled space were designed in collaboration with the Institute of Fluid Mechanics and Thermodynamics of the Faculty of Mechanical Engineering of the Czech Technical University in Prague |
| Security |
Electromechanical security lock
Reinforced door construction Stabilizing elements for anchoring to the ground |
| Services |
The box must be connected to the control module
Comprehensive software options: • integration of third-party web applications • connection to external client systems via API • integration of various carriers |
| Connecting |
Internet connection via LAN or GSM signal
|
| Power |
230 V
|
| Dimensions |
Cooling module - 120 cm x 225 cm x 63 cm (width x height x depth)
|
| Support |
Design
Transportation HW and SW installation System setup and operator training Warranty and post-warranty service Customer support |
| Warranty |
Standard 12 months, extendable up to 5 years
|
Location of boxes
-
Municipalities
-
Urban districts
-
The Village
-
Suburbs

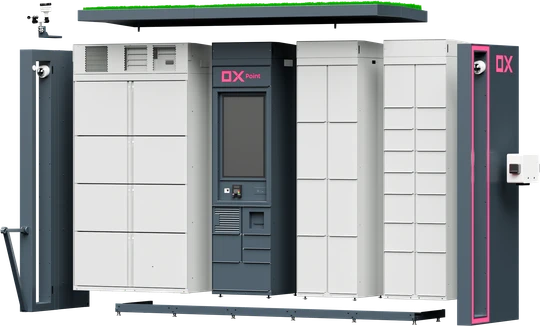

OX Point One
