OX BOX Village Smart
Stadnard+ version with second camera, design sidewalls and canopy. Now with the option of a 32" display.

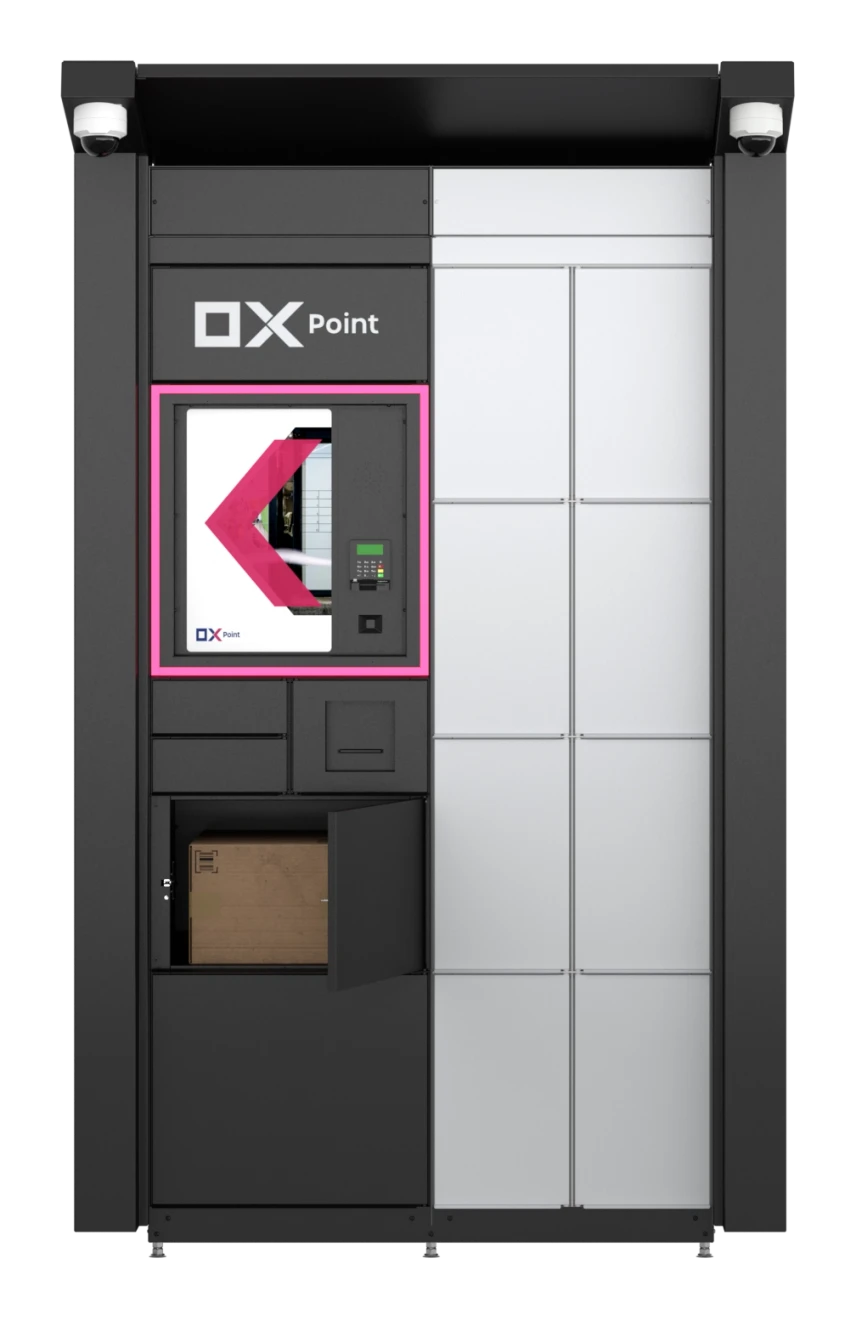

OX Point Universal Delivery Boxes
Its hardware and software solution respects the current and future needs of these municipalities, which participate in its development.
| Receiving parcels / mailbox | 11 / 1 |
| 21" interactive LED display | YES |
|
Complete door including electromechanical lock |
YES |
|
QR and EAN code reader |
YES |
|
Shelf capacity |
up to 50 kg |
|
Stainless steel levelling base and ground anchorage |
YES |
|
Anti-corrosion and anti-graffi ti surface treatment |
YES |
|
CCTV |
2 cameras |
| Thermal label printer | YES |
|
Roof |
Elegant |
|
Design side posts |
Elegant |
Technical Specifications
| Construction |
Suitable for indoors and outdoors Riveted self-supporting sheet metal construction Outdoor configuration with PUR anti-leak seal Anti-corrosion and anti-graffiti finish Long life electromechanical lock Shelf load capacity up to 50 kg Individual customisation possible Variable modular solution Configuration with classic and refrigerated boxes
|
| Security |
QR and EAN code reader Security electromechanical lock Security camera with recording (optional) Stabilizing elements for anchoring into the ground
|
| Controls |
Terminal with user navigation Admin interface
|
| Services |
Possibility to integrate other services - Integration of third-party web applications (e.g. electronic office board) - Integration of different carriers
|
| Payment |
Payment terminal option with NFC reader
|
| Connecting |
Internet connection LAN or GSM signal
|
| Power |
230 V
|
| Dimensions |
Module - 60 cm x 210 cm x 63 cm (width x height x depth)
|
| Support |
Design Transportation HW and SW installation System setup and operator training Warranty and post-warranty service Customer support
|
| Warranty |
Standard 12 months, can be extended up to 5 years
|
OX BOX Village Standard
Basic municipal box with the ability to receive and send parcels equipped with a 21" touch screen. With the possibility of electronic office board service and transfer of things between citizens.
OX BOX Village Standard +
Standard version enhanced with camera system and thermal label printer for shipments. Now with 32" display option.
